vBenchmark

Summary:
Have you ever wondered how to quantify the benefits of virtualization to your management? If so, please consider using vBenchmark.











vBenchmark measures the performance of a VMware virtualized infrastructure across three categories:

– Efficiency: for example, how much physical RAM are you saving by using virtualization?
– Operational Agility: for example, how much time do you take on average to provision a VM?
– Quality of Service: for example, how much downtime do you avoid by using availability features?

Continue reading “vBenchmark”

Checksum Offload – network slow downs?

Hi.
I’m pretty sure that the Checksum Offload causes a bunch of network slow downs – especially in a virtual environment.
Whenever a customer says that it takes a good few seconds to open i.e. a Word document, placed on a share, I always disable Checksum Offload wherever possible on the NIC, inside the VM. This has always been the main reason for the slow downs. I’m not sure why exactly, but it seems that disabling this feature solves the problem!

Offload

Any comments are welcome!

Upgrading your virtual hardware to version 7 (VMware vSphere)

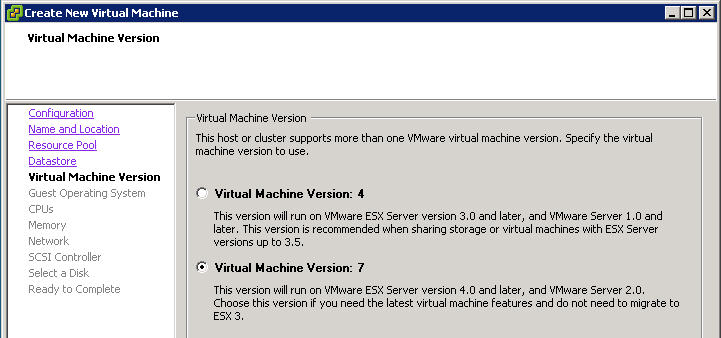

If you’ve upgraded to or installed ESX(i) 4.0 you’ll see that you have an advanced option to pick which virtual machine hardware version to use for your new VMs. As noted in the image below, the virtual hardware version will determine which other VMware products the VM can be run on. Virtual machine version 7 is also required for new ESXi 4.0 features like virtual IDE hard drives, VMXNET generation 3 virtual NICs, the LSI Logic SAS virtual controller and VMDirectPath. If you’ve upgrade from ESXi 3.5, you can use the process below to upgrade the virtual hardware version from 4 to 7.

Click on the images to get full-size previews.

upgrade_0

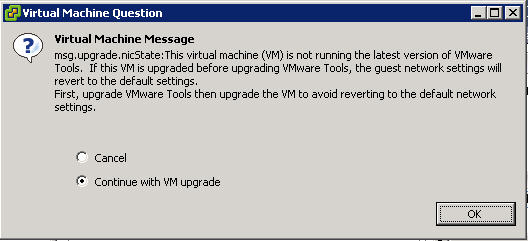

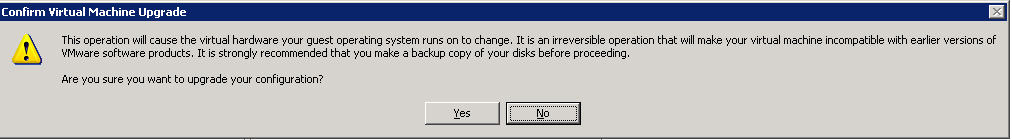

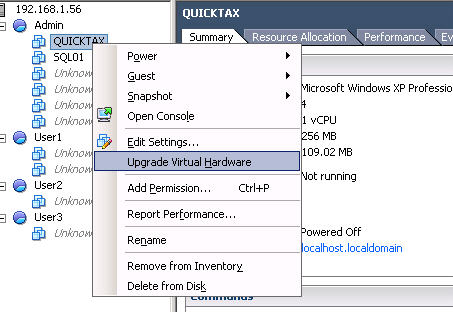

 1) While the VM is powered down, right click on the VM and select Upgrade Virtual Hardware. If the VM is already at version 7 then the option will not be available. The option will also not be available if the VM is running. As shown in the 2nd image, the option is upgrade the virtual hardware is not reversible. This includes a VM with a snapshot on it. If you’re using vCenter Server, you can use Update Manager to upgrade the VM which will automatically backup the VM before the upgrade. As shown in the 3rd image below, it is best to upgrade VMware Tools in the VM prior to upgrading the virtual hardware. This will help preserve network settings especially on Microsoft Windows VMs.

upgrade1

upgrade2

upgrade3

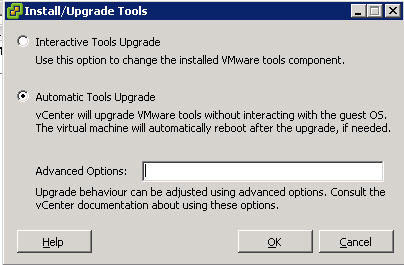

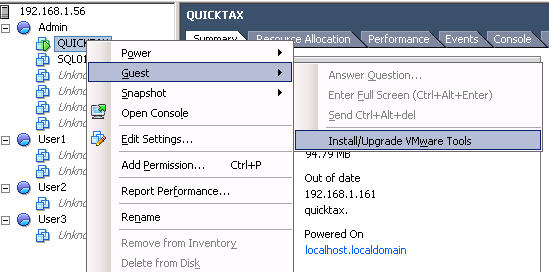

2) If you’ve opted to upgrade VMware Tools prior to the virtual hardware upgrade, selec the Cancel option shown on the image above and click OK. Then power on the VM and once it has booted up, you can right click and select Guest \ Install/Upgrade VMware Tools. With ESXi 4.0 you can select to manually upgrade VMware Tools or to have VMware Tools automatically upgraded.

upgrade4

upgrade5

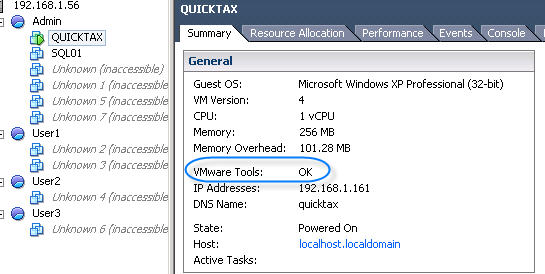

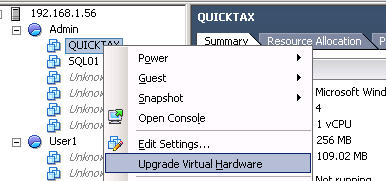

3) After VMware Tools has been upgraded, the status should show as OK on the summary page for the VM. Select the Upgrade Virtual Hardware option again. After a few minutes the process should complete as shown in the 3rd image below.

 upgrade6

upgrade7

upgrade8

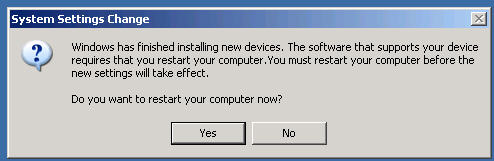

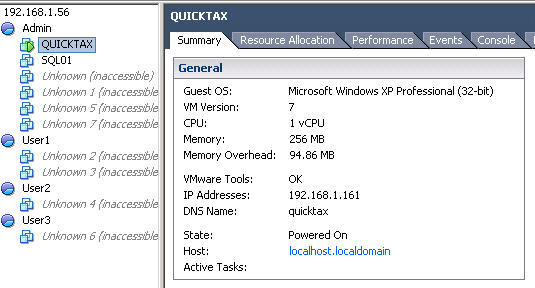

4) Once the process has completed, the VM Version should show 7 on the VM’s summary page. You will also want to check the console of the VM as the change in virtual hardware may require a further reboot of the VM.

 upgrade9

upgrade10

5) And there you go, hope this works out for you! Thanks to VM-Help for the info.
